• Length 82 m
• Width 10,5 m
• Natural rain generation
• Control of drop distribution, drop size and quantity

​​​​​​​Test Item

• ​​​​​​​​​​​​​​Testing of Modern and Driverless Vehicle Technologies under Adverse Weather Condition

• Realistic environmental impact testing
• Leak testing for drivetrain

• 450 m x 20 m
• High Performance Road Marking System
• Highly digitized infrastructure: C-ITS and 5G network coverage
• Infrastructure equipment for various ISAD levels
• Possible tests
  • Lane change
  • Roadway rejuvenation
  • Merge into trafic
  • Reeving
  • Shearing out
  • Overtake
  • Highway exit and entrance
  • Column traffic
  • Obstacle detection

• Length 650 m
• Width 8 m

​​​​​​​Test Item

• Reliability and Fatigue durability load data aquisition

• Customized drives and mobility trails
• Winch and salvage testing with different slopes

• 10 pothole pairs 3000 mm from pothole to pothole longitudinally
• Length 1,7 m
• Width 1,2 m
• ​​​​​​​Depth 150 mm

​​​​​​​Test Item

• Function and durability

• 1 ABB mobile charging station 64 A
• 1 ABB stationary charging station
• 1 wallbox mobile
• 2 plugs 32 A
• 2 plugs 16 A

• For inspection over the period of the durability test
• Equipped with driver room, meeting room, restroom and a 35 t inspection ramp

Test Item

• Thermal analyses under static running condition
• Agricultural tractor PTO analyses
• NVH & drive train vibration

​​​​​​​Specification of Test Rig

• 1.909 Nm
• 450 kW
• 5.500 Rpm

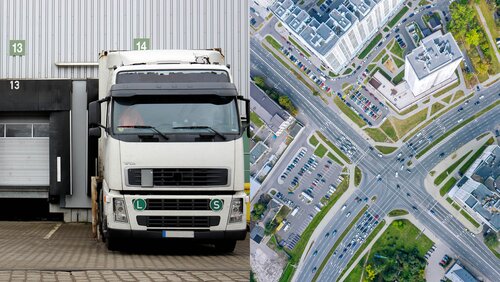

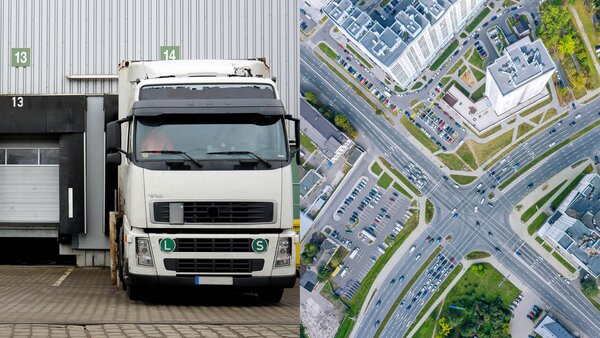

• Up to 2700 m² of maneuvering areas and loading and unloading zones
• Adjustable ramps
• Smart entrance gate
• Testing of automated logistics activities
• Loading and unloading of trucks and delivery vans
  • City traffic zone with 250 m network of paths
  • Simulation of buildings with dummies
  • Different banquets
  • Footpaths and bike paths
  • Floor markings and traffic signs

• Depth variable from 0 – 1800 mm in 200 mm steps

​​​​​​​Test Items

• Fording function
• Internal / external leakage durability for tightness

• Length 15 m
• Width 5 m​​​​​​​

​​​​​​​Test Item

•  Function of drive train and difflock durability

• Length 15 m
• Width 4 m, with side barriers
• Limited to 10 t axle load

​​​​​​​​​​​​​​Test Item

• Vehicle function

• Single steel obstacles with 200 mm and 250 mm
• Mounted to concrete surface
• Axle load up to 16 t

​​​​​​​Test Item

• Single maximum load cases
• Function test (vertical impact to driver seat)

• Torsion and parallel obstacles 150 mm (26 pieces)​​​​​​​​​​​​​​

​​​​​​​Test Item

• Durability frame, chassis and cab suspension

• Torsion obstacles medium-duty 300 mm (46 pieces)
• Torsion obstacles heavy-duty 400 mm (34 pieces)

​​​​​​​Test Item

• Durability of frame twisting

• Roundabout with 4 junctions (width 7 m)
• Different confluence angles
• Inside diameter 48 m
• Outside diameter 97m

• DIN ISO 10844:2014
• Power supply 220 V / 50 Hz

• Customized drives and mobility trails
• Winch and salvage testing with different slopes

• Length 100 m
• Width 4 m
• Driving speed from 15 – 45 km/h

​​​​​​​Test Item

• Overall durability
